1.14 mm flexo plate
Thin, hard plate for fast, fine work on labels, narrow web and adhesive tags. Digital or analog.
- Hardness 73–75 °A
- 1–99% at 175 lpi
- Relief 0.5–0.6 mm
Plates and presses for printers who can't afford downtime.
Grafiqonbd supplies flexo printing plates, CTP plates, and flexo, offset and digital printing machines. Tell us what you print and we'll quote the right setup.
What we supply
Consumables for daily production and machines for new or expanding print rooms. Don't see what you need? Ask us.
Flexo printing plates
Photopolymer plates for flexible packaging, labels, corrugated boxes and folding cartons. They hold fine highlight dots, are ready for flat-top dots, transfer ink evenly with solvent and water-based inks, and resist ozone and solvents. Specifications come from the manufacturer and can change, so ask us to confirm before you order.
1.70 mm flexo plate
For flexible packaging, paper cups and shopping bags. Digital or analog.
- Hardness 63–65 °A
- 1–98% at 150 lpi
- Relief 0.5–0.7 mm
2.28 mm flexo plate
All-round plate for thick plastic film, woven sacks, paper bags, pouches and folding cartons. Works with water-based and solvent inks. Digital or analog.
- Hardness 58–60 °A
- 1–99% at 150 lpi
- Relief 0.6–1.0 mm
2.84 mm flexo plate
Softer plate for micro-flute corrugated boxes and canvas packaging. Digital or analog.
- Hardness 42–45 °A
- 2–95% at 120 lpi
- Relief 0.8–1.2 mm
3.94 mm corrugated flexo plate
Heavy-duty analog plate for outer shipping cartons and coarse board. Made for water-based corrugated inks.
- Hardness 36–38 °A
- 3–95% at 100 lpi
- Relief 1.2–2.0 mm
Typical processing: back exposure 15–40 seconds, main exposure 6–15 minutes, washout 5–10 minutes, drying 45 minutes at 60 °C, then 5 minutes of UVC finishing.
Flexo platemaking equipment and consumables
All-in-one flexo platemaker (HYB series)
One unit for UV exposure, solvent washout, hot-air drying and UVC detacking. Models HYB-300 and HYB-900.
- Plate size up to 1200 × 2032 mm
- Digital control panel
PET double-sided mounting tape
High-tack yellow tape that holds plates on the cylinder without lifting at the edges during fast printing.
UV exposure tubes (UVA and UVC)
Replacement lamps for flexo plate exposure and detacking units.
CTP and PS plates
Offset plates on grained, anodised aluminium in 0.15–0.30 mm thickness. Specifications come from the manufacturer and can change, so ask us to confirm before you order.
HD-HL CTCP plate
UV-CTP plate that works with the main violet (405 nm) platesetters and developers. Wide exposure window and fast ink-water balance, so less waste at start-up.
- 405 nm UV laser
- 2–98% at 200 lpi
- 50,000–80,000 impressions unbaked
- 0.15–0.30 mm
HD-ST CTCP plate
UV-CTP plate with a coating made to resist UV inks. Fast exposure and a longer run length for commercial and packaging work.
- 405 nm UV laser
- 1–99% at 200 lpi
- 80,000–100,000 impressions unbaked
- 0.15–0.30 mm
HD-DS thermal CTP plate (double layer)
Double-layer thermal plate for long runs. Handles UV ink without baking and tolerates changes in developer strength and temperature.
- 830 nm thermal laser, 120–140 mJ/cm²
- 1–99% at 450 lpi or FM screen
- 150,000–200,000 unbaked, over 500,000 baked
- Daylight handling
HD-3 thermal CTP plate
Single-layer thermal plate with steady batch-to-batch quality and sharp dots at fine screen rulings.
- 830 nm thermal laser, 110–130 mJ/cm²
- 1–99% at 200 lpi
- 100,000 unbaked, over 300,000 baked
- Daylight handling
HD-4 thermal CTP plate
Forgiving thermal plate that copes with changing processor conditions. Smooth tones and quick ink roll-up with little dampening.
- 830 nm thermal laser, 110–130 mJ/cm²
- 1–99% at 200 lpi
- 100,000 unbaked, over 300,000 baked
- Daylight handling
HD-HQL positive PS plate
Conventional positive PS plate for traditional offset presses. Short exposure time, sharp dots and smooth half-tones.
- 350–420 nm UV light
- 2–98% at 175 lpi
- 40,000–60,000 impressions unbaked
- 0.15–0.30 mm
Plate developers
Developer PD-PS
Liquid concentrate developer for conventional PS plates and UV-CTP (CTCP) plates. Develops quickly with sharp dot edges, and has anti-foaming and anti-sludge agents that help the processor bath last longer.
Developer for thermal CTP
Developer made for 830 nm thermal CTP plates. Keeps fine dots without background staining, holds a steady pH and needs little replenishment.
Store plates at 10–26 °C and below 65% humidity, away from direct sunlight. Shelf life is 18 months from the manufacturing date.
Label and tape printing machines
Presses and finishing machines for garment labels, woven tape and ribbon. Specifications can change, so ask us to confirm before you order.

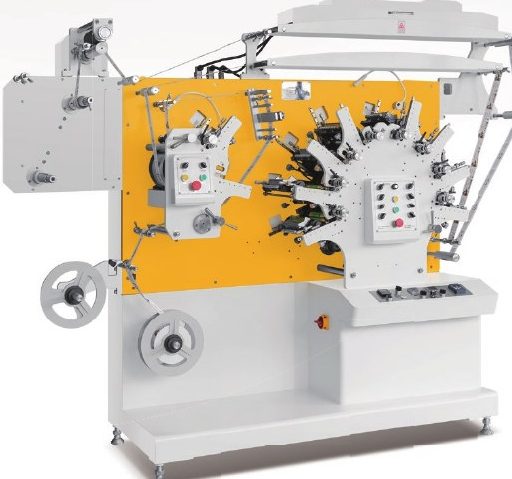

JR-1282 flexo label press
Prints up to 8 colours on the front and 2 on the back of ribbon, satin and nylon tape. Takes water-based and oil-based ink.
- Speed up to 70 m/min
- Print width 140 mm, length 111–300 mm
- 6.7 kW, 1,250 kg

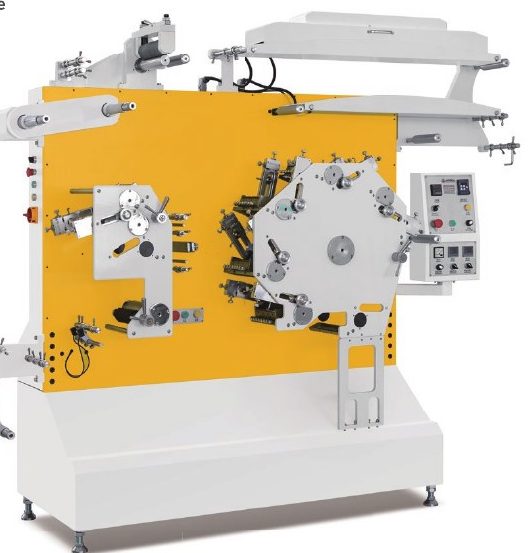

JR-1500 series flexo press
A range from 2 to 8 colours, single or double-sided, for woven-style tape, cotton tape and adhesive tape.
- Speed up to 60 m/min
- Max web width 155 mm
- Print length 108–401 mm

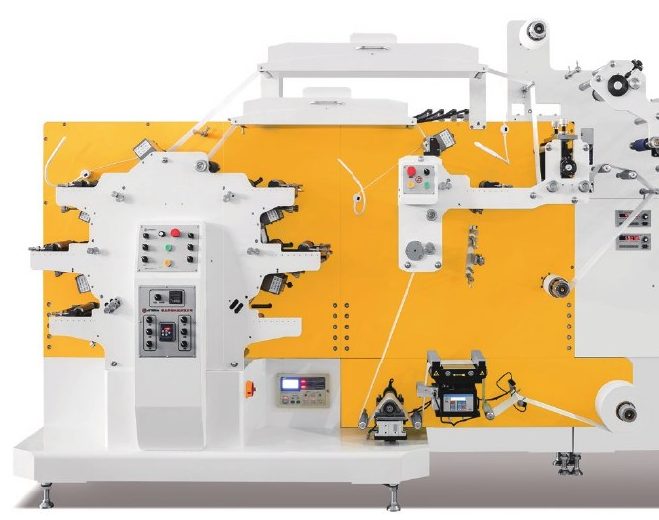

JR-1461S flexo label press
Flexo label press for water-based and oil-based ink, with infrared and UV drying and in-line round die cutting.
- Speed up to 90 m/min
- Print width 140 mm, length 111–254 mm
- 16 kW, 220 V / 380 V

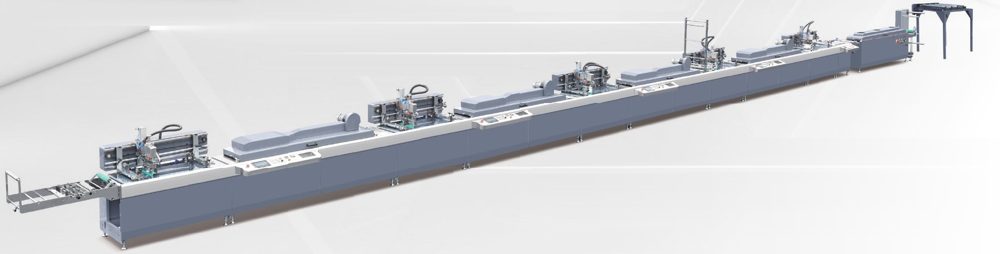

JD-3005 silk screen label press
Fully automatic silk screen line with servo feeding, for thick, bold ink on trademarks and tape. 2 to 5 colour models.
- Print area 800 × 280 mm
- 300–1,500 prints per hour
- Remote network support

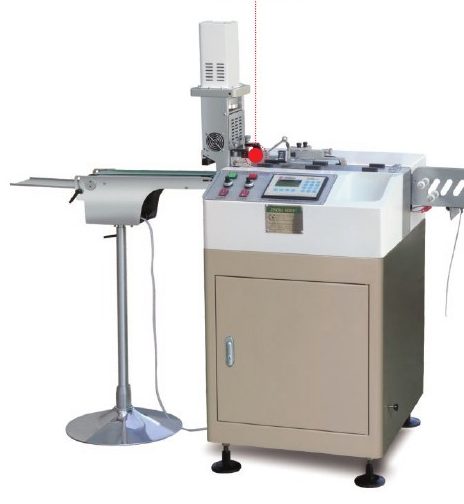

JC-3080 ultrasonic label cutter
Digital-control cutter that seals the label edge with ultrasonic heat and stacks finished labels.
- Cut length 10–999 mm, width 10–75 mm
- Up to 700 pcs/min (JC-3080B)
- 220 V, 1.5 kW

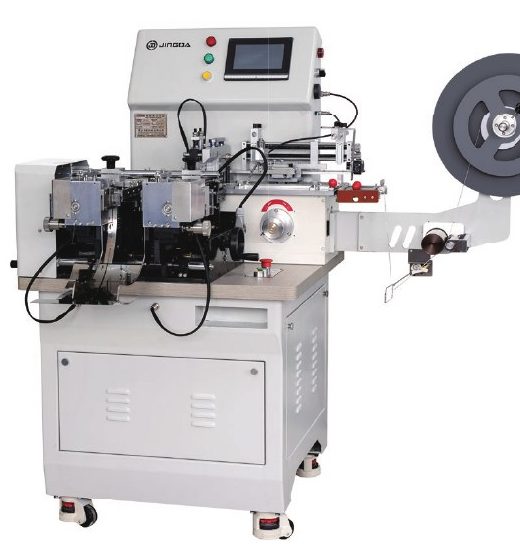

JZ-2817 cutting and folding machine
Cold and hot cutting with three fold styles: end fold, centre fold and mitre fold. Built for fabric labels.
- Cut length 18–160 mm, width 10–55 mm
- Up to 200 pcs/min
- 200–240 V, 2.5 kW
Digital label printing machines
UV inkjet presses for labels with no minimum run and fast turnaround. Specifications can change, so ask us to confirm before you order.
PicoJet 1200 DRS digital label press
High-resolution UV inkjet press for short and long label runs. Runs reel to reel, or as a hybrid with inline flexo, lamination, cold foil and die cutting.
- Print width 254 mm, up to 350 mm
- Speed 50 or 75 m/min, 50–300 µm material
- CMYK and white, plus orange, green and violet
- Up to 2400 dpi, high-opacity white, LED cure
PicoColour digital label press
Compact UV inkjet press with a touch screen, built on the PicoJet platform. A simple way to start digital label printing.
- Print width 254 mm, up to 50 m/min
- CMYK, or CMYK plus white
- 50–300 µm material
- Inline die cutting, slitting and lamination options
Offset printing machines
Tell us your job and budget and we will send options.
Photo coming soon
Offset printing machines
Sheet-fed presses for books, brochures, packaging and stationery.
